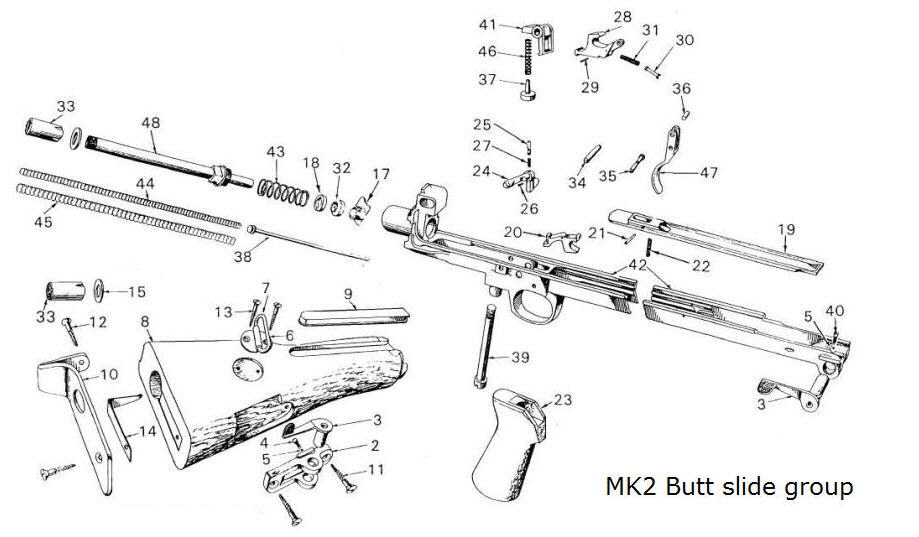

NO

PART NO

DESCRIPTION

MGA SP4

BUTT MOUNTING BRACKET ASSEMBLY MK2

2

MGD 2462

BRACKET MOUNTING BUTT MK2

3

MGD 1291

PIN MOUNTING

4

MGD 2992

SCREW RETAINING MOUNTING PIN

5

BALL B

BALL ANTI FRICTION SCREW RETAINING

6

MGD 2464

BRACKET SWIVEL SLING BUTT MK2

7

MGD 2463

SWIVEL SLING BUTT MK2

8

MGD 2458

BUTT MK2 WOOD

9

MGD 1231

COVER COCKING HANDLE SLIDE

10

MGD 2459

BUTT PLATE MK2

10

MGD 2578

BUTT PLATE MK4 (FLAT NO SHOULDER REST)

11

MGD 1345

SCREW BUTT MOUNTING BRACKET

12

MGD 1345

SCREW BUTT PLATE

13

MGD 2465

SCREW SWIVEL BRACKET BUTT MK2

14

MGD 2460

SPRING RETURN SPRING TUBE NUT BUTT MK2/4

15

MGD 2461

WASHER RETURN SPRING TUBE NUT BUTT MK2/4

17

MGD 1210

BUFFER PISTON

18

MGD 1228

COLLAR FRICTION PISTON BUFFER

19

MGD 2488

COVER EJECTION OPENING MK2

20

MGD 2489

CATCH EJECTION OPENING MK2

21

MGD 1281

PIN CATCH EJECTION OPENING

22

MGD 1363

SPRING CATCH EJECTION OPENING

23

MGD 2498

PISTOL GRIP MK2 WOOD

24

MGD 1263

LEVER CHANGE (ASR)

NO

PART NO

DESCRIPTION

25

MGD 1239

DETENT LEVER CHANGE (ASR)

26

MGD 1286

PIN DETENT LEVER CHANGE (ASR)

27

MGD 1370

SRING DETENT LEVER CHANGE (ASR)

28

MGD 1264

LEVER TRIPPING MKI

29

MGD 1293

PIN TRIGGER SPRING PLUNGER

30

MGD 1311

PLUNGER TRIGGER SPRING

31

MGD 1384

SPRING TRIGGER

32

MGD 1269

NUT PISTON BUFFER - SLIDE

33

MGD 2467

NUT RETURN SPRING TUBE MK2 (1 SLOT)

33

MGD 3734

NUT RETURN SPRING TUBE MK3 (2 SLOTS)

34

MGD 2491

PIN SEAR MK2

35

MGD 1299

PIN TRIGGER

36

MGD 1290

PIN TRIPPING LEVER

37

MGD 1313

POST SEAR SPRING

38

MGD 1333

ROD RETURN SPRING

39

MGD 2499

SCREW PISTOL GRIP MK2

40

MGD 2992

SCREW RETAINING MOUNTING PIN

41

MGD 1349

SEAR

43

MGD 1361

SPRING PISTON BUFFER - SLIDE

44

MGD 1395

SPRING RETURN MK2 INNER

45

MGD 1396

SPRING RETURN MK2 OUTER

46

MGD 1380

SPRING SEAR

47

MGD 2492

TRIGGER MK2

48

MGD 2483

TUBE RETURN SPRING MK2
